Monday, January 23, 2012

Addendum to second installment: a TeX/LaTeX template for outlines

As a follow-up to the last installment regarding creating outlines with nano, I've done some further experimentation with LaTeX and wanted to post here a template I created. The template contains the mark-up that, when appropriately applied, can turn a nano outline into one that prints nicely on a page. After running pdflatex on the created file (which should be given a *.tex extension first), a nice pdf can be output for sending to the printer.

Without further ado, the code:
\markright{\today {\hfill ***Header*title*here***\hfill}}
\linespread{1.3} % gives 1.5 line spacing
%       \outl{2}
%               \outl{3}
%                       \outl{4}
%                               \outl{5}
%                                       \outl{6}
%                                               \outl{7}
%                                                       \outl{8}
%                                                               \outl{9}
%                                                                       \outl{10}
Now, for a bit of an explanation. I've increased the font size (see the \begin \end{Large} stipulations) due to my deteriorating vision: the standard 10 pt. font used for the document class just is not going to work for me. For the same reason, I needed to increase line spacing (the \linespread stipulation).

Of course the \outl{#} comments indicate the levels of the outline and how far from the left margin the text gets spaced. The spaces in the template are not, of course needed, but I find them to be a visual aid when looking at this mark-up, so I left them in the template.

The key package I'm using, as may be evident to those of you who've learned a bit about TeX/LaTeX, and the one that allows more than four outline levels, is the cjwoutl package. I also wanted to fiddle with page margins, since the default article class margins seem terribly wasteful of paper. So I set them to be one inch all around.

The final printed product looks pretty nice. Truth be told, I'd like to see greater indentation increments for the outline levels, but I think that might actually be tweakable. I'm not up for attempting that at the moment though, since this looks like it should suit my needs fine.

So, what remains to be done is to find some way to apply that code to the outlines I create in nano. For the time being, I'm content to just edit the files manually, adding mark-up where needed. But there is surely a way to automate that task--a way, unfortunately, shrouded in mystery for uninitiated plebians like myself.

What would need to be done first of all is probably to add at least some special marking to the outline file itself. For example, if each outline level entry were to begin with a unique character unlikely to appear anywhere else in the document as the first character in a new line--say, an equals sign--processing the file could probably be simplified. A program could then be written to look for every new line that begins, either with the equals sign, or with one or more tab spaces followed by an equals sign. Depending on the presence of the equals sign at the beginning of new lines, or after one or more spaces from the newline, the program could be told to replace the equals sign with the \outl{#} mark-up, appropriately incremented.

Then, of course, the preamble and ending would need to be added to the file. Finally, the file would need to be saved with a new extension, namely the .tex extension, so that pdflatex could process it.

For better reference, here are some screenshots of the stages of creating this sort of outline using nano. First, some dummy text entered into a test.outl file open in nano:

In the next phase, the mark-up is added and the file is saved with a new extension (note how the color highlighting changes when the file's extension is modified)(LATER EDIT; you may also note that the prepended and appended lines do not match exactly the mark-up from my template--that because I edited those parts slightly, having found a better way to increase font size for the document):

Finally, pdflatex is run on the file that had the mark-up added and its extension changed appropriately. The pdf produced looks like this:

To give some concrete examples, using regular expressions as they are understood by nano, of the way the nano outline file would have to be processed, the following. Every instance of ^= (new line followed by equals sign) should be replaced by ^\outl{1} (new line followed by first-outline-level mark-up). Next, every instance of ^[[:blank:]]= (new line followed by tab space, followed by equals sign) should be replaced by ^[[:blank:]]\outl{2}. And so on for the various outline levels.

Then, the mark-up
\markright{\today{\hfill ***Header*title*here***\hfill}}
\linespread{1.3} % gives 1.5 line spacing
should be prepended to the beginning of the file, and
should be appended to the file's end. Finally, the extension of the file to which all the mark-up has been added should be changed to .tex. After this, the file is ready for processing by pdflatex.

That's how far I've gotten with it to date. Next, I'll be looking for the aid of someone who might be able to give pointers on how the file could be processed as described. I note that Steve Litt's conversion program for making vimoutliner files into something LyX can handle is done using awk. So, perhaps this could be done in the same way. If I discover a way of doing it, I'll post the results in a further addendum to second installment in this series.

NOTE: I made a later edit to the TeX/LaTeX code so that the date, rather than the author's name, appears at the left margin in the header. I also increased the font size for the header title. So the screenshots no longer correspond precisely with the code.

ANOTHER LATER NOTE: here, by the way, is the modified entry from .nanorc that both makes the color highlighting possible, as well as designates the equals sign as a sort of pseudo-bullet (note that levels that do not start with the equals sign do not get color highlighted on this scheme):
syntax "outl" "\.outl$"
color brightwhite "(^)=.*$"
color brightred "(^[[:blank:]])=.*$"
color brightgreen "(^[[:blank:]]{2})=.*$"
color magenta "(^[[:blank:]]{3})=.*$"
color brightblue "(^[[:blank:]]{4})=.*$"
color brightyellow "(^[[:blank:]]{5})=.*$"
color cyan "(^[[:blank:]]{6})=.*$"
color brightred "(^[[:blank:]]{7})=.*$"
color brightgreen "(^[[:blank:]]{8})=.*$"
color magenta "(^[[:blank:]]{9})=.*$"
color brightblue "(^[[:blank:]]{10})=.*$"
color brightyellow "(^[[:blank:]]{11})=.*$"
color cyan "(^[[:blank:]]{12})=.*$"

Wednesday, January 18, 2012

Second installment: Outlining with nano

nano, the old stand-by, low-resource console editor, is probably most often used for quickly editing computer configuration files. It seems also sometimes to be used by programmers for writing programs or editing code. Some of us non-programmers can think of other uses it might serve, such as writing documents or creating outlines. This article will discuss some of the uses I've tried to make of it and some ideas I have for further deploying it.

My history with nano

I'm a long-time user of the nano text editor, it having been from the beginning for me a far more approachable tool for editing configuration and other text files in GNU/Linux than the other popular option, vi. My experiences with nano began in the days when GNU/Linux operating system installations were command-line affairs, and when most initial configuration of the system was done from the terminal. But even after operating system installations developed into a thing of graphical wonder (Knoppix was sort of a trailblazer in this realm, as I recall), I continued to use nano for many tasks owing, not in small part, to the fact that I'm a trailing-edge technologist (read; I re-purpose cast-off or firesale equipment), and so gravitate toward low-resource computing applications.

When I needed to create a very long and complex document a few years ago, I was even hoping at that point that I could learn enough TeX mark-up in order to be able to write most of it using nano. In the end, however, I found myself too intimidated by the prospect of both learning TeX mark-up and planning and executing the complex document, to make the attempt. I chose instead to use a WYSIWYG word processor for the task--but that's another story.

I've since maintained my interest in TeX and LaTeX, and, in the last year or so, actually managed some modest successes with it. Needless to say, I've been using nano right along, and have combined the two in those successful tests. But what got me started thinking about a possible new way of using nano in combination with TeX/LaTeX was actually a tweaked version of vim--vimoutliner with which I was experimenting. And my initial experiments were not TeX/LaTeX related, but were actually focused on finding a text-mode outliner.


Ok, I know that's a rather convoluted introduction to this story but, hey, life is like that. I all the time stumble onto new and unexpected variations, both in my technical endeavors as well as in other areas of life. So, please bear with me as I recount some of the convolutions, and be comforted by the fact that I'm not rehearsing them all. :)

Now, as a pre-emptive nod to all you emacs lovers out there who are just hopping at the prospect of putting in your pitch for emacs org-mode here, know that I'm aware of and interested in that project. In fact, I already attempted to install it. But once I saw the outrageous size of emacs and associated files, I got cold feet. vim was far smaller, and the vimoutliner package that causes vim to function as a nice outliner doesn't add much beyond that. So, off I went for some experimentation with vimoutliner.

One of the interesting things vimoultiner does is to cause varying outline levels to appear in different colors. For example, the leftmost level will, in a terminal with a dark background, appear in a white font, while the next level--one tab space from the left margin--will be in a red font. The next level--two tab spaces from the left margin--will appear in a green font. And so forth. So, vimoutliner enables vim to use both a particular type of formatting, where tabs at the left margin determine outline levels, as well as applying font coloring to go with those levels.

That's a nice little trick in that the colors allow the eye more readily to distinguish between outline levels--something that, in more ponderous applications such as Libre Office Writer (LOWriter hereafter) is accomplished by both indentation from the margin and the use of varying symbols or letter/number combinations for the differing levels.

Which brings up another factor in my quest for a lightweight outliner: LOWriter's outlining mode is absolutely horrendous. It keeps popping up some tool bar as you move through outline levels, which steals focus from the cursor, forcing you to do a mouse click at the point where you desire to enter text. Not to mention the fact that it's severe overkill to use such a gigantic application for creating an outline.

As I found out from my experimentation with vimoutliner however, both the lightweight and heavyweight applications have their advantages and drawbacks, depending on what is the final goal. And speaking of final goals, this provides occasion for highlighting a wonderful discovery I made with respect to TeX/LaTeX: the author of vimoutliner (Steve Litt) has created a conversion program that turns his outline files into the chapter, section, and sub-section headings of a book to which can then be added all the remaining text. Incidentally, he uses LyX for entering in the additional text.

I created a few outlines using vimoutliner--not for any book publishing projects, my more immediate need being the creation of notes to be used during lecture delivery. Though it did work well for me for the most part, things were still wanting in certain respects when it came to lecture note creation. For example in a text editor like vim (nano has the same shortcoming, you'll doubtless understand) there is no simple way to render something that will render well in printed form, such as WYSIWYG word processors allow and such as is needed for something like lecture notes, that need to be as legible as possible and to contain various visual cues.

For example, for use in the lecture hall, a larger font might be wanted--perhaps 14-point--and wider line-spacing. The varying symbols WYSIWYG editors can insert at differing outline levels also provide extra visual cues. Certainly page numbering, and perhaps even a header, would be desirable in the final, printed product as well. So, while the coloring vimoutliner provides on-screen for various levels is an aid to creating the outline, when it comes time to print the outline for use from the podium, it falls seriously short.

As a stop-gap measure, I imported the outline files I had made into LOWriter and performed some of the needed manipulations there. Not a very satisfactory solution but one that got me by at the beginning. The real solution to this issue, i.e., to creating from a file that works well on the computer to one that prints well onto a page, is to come up with some sort of conversion program, as Steve Litt did for his book outlines. That task--despite Steve's short-lived but well-intentioned efforts to teach me a little python (I got as far as creating at the moment beyond my capabilities.

Can I do something like this with nano?

But I've not given up altogether. One avenue I've begun exploring as a possible resolution to the issues--owing to being once again faced with the prospect of learning simultaneously two new systems (vimoutliner and whatever programming technique I'd need to use in order to convert my outlines)--is whether I might be able to employ my old friend nano in place of the less familiar vim in this scheme somehow. Oh yeah, this article is supposed to be about nano, isn't it?

My initial question was, then, whether I could get nano to function as well on-screen as vimoultiner. Could I make it do the same sort of indentation of levels, and possibly even cause it to assign differing colors to the varying outline levels? Well, that part of the equation turns out to have been quite trivial: with just a couple of simple tweaks to the configuration file .nanorc, nano can be made to do those same outlining features.

Here's how it's done. First, we'll need to locate nano's configuration file, .nanorc, or else create one. To do the latter, you would simply issue from the command line touch ~/.nanorc. That, of course, creates an empty .nanorc file in your home directory.

To invoke the outlining magic, two entries need to be made in that file. The first entry, which causes tabs made at the left margin to create persistent outline levels, is set autoindent. With just this entry in your .nanorc, nano will begin to treat all tabs that start at the left margin as level indentations--meaning that after each wrapped line or each hard return, the cursor returns to that same level on subsequent lines. To get the cursor back to the left margin, it's necessary to use the backspace key or the left arrow key.

The other way to get a .nanorc file in your home directory, or to perhaps create a nano configuration file that obtains system-wide, is to use the sample file found--on my Ubuntu computer--in /usr/share/doc/nano/examples, a file which, with proper editing, can implement nearly any tweak you might want to make to nano. For that file to be valid system-wide, it should, I believe, be renamed to nanorc (no leading period) and copied to the /etc directory.

In that sample file, for example, the line set autoindent is already included and you need only to uncomment it to activate that feature in nano. Likewise, you'll see toward the end of that file that a number of alternate nanorc files can be invoked as well. What are these?

If you inspect those alternate files--on my system located in the /usr/share/nano directory--you may note that they are pre-configured to apply color highlighting to certain types of files. For example, the html.nanorc configuration file stipulates that all files ending in .html, when opened with nano, are to have angle-brackets highlighted in blue, while other elements are to appear in red. This is all accomplished through the agency of regular expressions, which nano identifies as you type and so highlights with the defined colors in real-time.

I've worked a little in the past with regular expressions--mainly when I need to do "power searches" within LOWriter documents. I'm quite far from being conversant with the system, though, and need to consult some sort of documentation each time I want to do something involving regular expressions. Nonetheless, once I had read about these color-highlighting capabilities and understood that they relied on regular expressions, I suspected I might be able to get nano to do something very like the color highlighting vimoutliner does.

I had to experiment for a few hours, all the while trying to find any relevant snippets of information I might dig up on the internet, but I did finally find a way of causing nano to apply color highlighting to the differing levels that can be achieved by placing set autoindent into .nanorc.

That's done by, first of all, defining the extension of files to which the color highlighting should be applied. I decided to define my own extension: all files with the extension .outl should have the color highlighting applied to them. Then, I defined a set of regular expressions which cause color highlighting to apply to varying levels, as follows: white is applied to the first, left-most level; red is applied to the second level; green is applied to the third level; magenta is applied to the fourth level; blue is applied to the fifth level; yellow as applied to the sixth level; cyan is applied to the seventh level; and then the color scheme starts over again with red. I doubt I would ever create and outline that would go beyond seven levels, but it was trivial to add the capability to continue the coloration, so I did it.

Below is the entry I placed in .nanorc that causes the coloration to be applied:

syntax "outl" "\.outl$"
color brightwhite "(^).*$"
color brightred "(^[[:blank:]]).*$"
color brightgreen "(^[[:blank:]]{2}).*$"
color magenta "(^[[:blank:]]{3}).*$"
color brightblue "(^[[:blank:]]{4}).*$"
color brightyellow "(^[[:blank:]]{5}).*$"
color cyan "(^[[:blank:]]{6}).*$"
color brightred "(^[[:blank:]]{7}).*$"
color brightgreen "(^[[:blank:]]{8}).*$"
color magenta "(^[[:blank:]]{9}).*$"
color brightblue "(^[[:blank:]]{10}).*$"
color brightyellow "(^[[:blank:]]{11}).*$"
color cyan "(^[[:blank:]]{12}).*$"

The regular expressions stipulate that, in every file with the extension .outl, each new line that begins with a blank or series of blanks is to have all characters tinted with the appropriate shade to the end of the line. In this form, an outline can have a color-highlighting scheme that goes to thirteen levels. With those fairly simple modifications I was able to cause nano to mimic some of the chief characteristics of vimoutliner.

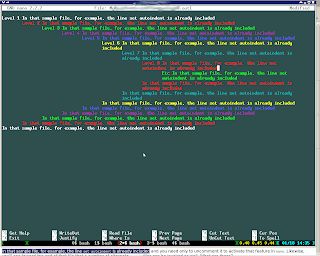

nano with my highlighting tweak
The difference, at least on the technical level, in how vimoutliner and nano handle the differing levels is not very clear to me. On the surface they differ in that my nano solution seems to treat all white space at the left margin as indicative of an outline level. So, either a space or a tab at the left margin indicates the second outline level, while either two tabs or two spaces indicate the third outline level. I believe there is no regular expression that differentiates a tab from a single space so, at my current level of understanding, it seems what I've come up with is the best possible solution for making nano do outline levels. In vimoutliner, on the other hand, only tabs at the left margin indicate outline levels.

What remains to be done: export outlines as can be done with vimoutliner

As I hinted earlier, however, my ultimate aims have not yet been accomplished. What I've managed to do thus far is to enable a console editor with which I am familiar to apply color highlighting to my outline files. This answers to two important considerations for me: it allows me to 1) utilize an easy-to-use and low-resource application to create outlines that 2) look good on the screen. But it does leave one very important consideration unanswered, namely how to get the created outline into a form that looks good on paper?

That's an issue on which I continue to work and I'm not really even sure where to begin. It seems that converting these outlines into a form that can be handled by LyX or even straight TeX/LaTeX, and from there into a nice printed form, should be possible--as certain vimoutliner add-ons that apparently utilize python for this, indicate. Since my capability with python has not progressed beyond creating, I'm certainly in no position to attempt to create that sort of converter.

A more congenial place for me to start, since I have slightly more experience with it, would be to use bash somehow. The little I know about it leads me to wonder whether, by bringing to bear something like awk or sed, a sort of search-and-replace could be done on the .outl files in order to add the relevant mark-up to them. But to be honest, I lack even the rudimentary knowledge to know whether bash might even be a viable option for this task.

Another alternative might be to create some macro in LOWriter that could import and apply formatting to these files. I don't have much more experience with macros than I do with bash scripting, though I have become quite familiar over the years with the LOWriter interface and the program's capabilities. Of course TeX/LaTeX printed output looks superior by far to what any office suite can produce. But I would be satisfied with a somewhat aesthetically inferior product for these lecture outlines if I could more readily accomplish the task with LOWriter.

If you have suggestions for any of the issues raised above, please offer them. Specifically, if you know of a way to distinguish, using regular expressions, tabs from spaces, please offer your input. Also, if you know whether the conversion of which I speak might be accomplished using bash and related utilities, please let me know: that would involve essentially searching for end of lines together with tabs/spaces and followed by any character, then replacing those instances with the same end of line, number of tabs/spaces, a TeX/LaTeX mark-up string, then the same character with which the line initially began (incidentally, the mark-up can be found at this site). Likewise, if you have any Libre/Open Office solution for importing these files into a list or outline, please say your piece.

Wednesday, January 11, 2012

First installment: A crude imitation of khanacademy's video lectures using GNU/Linux

The following offers a description--prefaced by a narrative about whence came my inspiration--of a rather kludgy GNU/Linux solution I cobbled together for enhancing my on-line lectures with a video element. I am far from being technically adept as a GNU/Linux user, having only lately in my 11 years of GNU/Linux use become reasonably proficient at administering my own small stock of GNU/Linux machines and my small LAN. Despite a lack of anything that could really pass as expertise in this field, I want to offer this description for two reasons: 1) it may be of help to others who are equally inexpert as I am and who wish to do something like what I've done; and 2) perhaps those who are more technically adept will weigh in and offer corrections, point out alternative applications, make suggestions for improving what I've come up with, or all of the above. It is with these caveats that I offer a description of my humble and rather unsophisticated attempts.

Perhaps you've seen some of the wonderful learning material khanacademy offers? Since I've done a bit of on-line instruction I was eager to see, once I'd heard about the site, what's being done there. I was quite pleased by what I saw and immediately saw in it an answer to a need I've perceived in my own on-line teaching endeavors; namely, how to incorporate into my on-line lectures some sort of video component.

To date, I've simply been recording lectures for my on-line course as audio files and posting the results on my course web site. I found this somewhat dissatisfying, being myself, as are many others, one who learns perhaps best with visual aids. I'd thought about how I might introduce some video element into my lectures but thus far had only considered filming myself looking into a camera and delivering a lecture. Handsome though I am, I could not see how that would result in any very meaningful enhancement to the lecture. The khanacademy method, which involves writing on a sort of virtual blackboard/whiteboard during lecture delivery, on the other hand, seemed to me a very good way of enhancing on-line lectures with video--video content that should surely enhance and augment the lectures.

A presentation program such as Power Point or OpenOffice/LibreOffice's Impress would certainly be an option for incorporating video into on-line lectures, many readers may now be thinking to themselves. That's undoubtedly true and does remain an area for me to explore further.

In terms of presentation programs, I actually have more experience with a more obscure, less polished presentation program called Magicpoint than I do with either of the more popular ones just named. The latest stable release of this program is a few years old, but it does appear the developer continues working on it as he is still, up to Jan. of 2012, releasing snapshots. As I mentioned, I consider myself still very much in the exploratory stage of enhancing my lectures with video so I undoubtedly will explore in the future the use of presentation programs for doing this. But for the moment I am quite enamored of the approach taken in the khanacademy lecture videos: being able to write or print to the screen, in a sort of chalkboard fashion, while delivering an on-line lecture, may offer the possibility of greater spontaneity and thus of more effectively commanding the student's interest during the lecture.

On seeing but a few minutes of the first lecture I accessed at khanacademy, I felt I'd found my answer--incorporating a sort of chalkboard as the video element to accompany the audio. But being a GNU/Linux user on the one hand, and something of a hardware trash-picker on the other, I wasn't sure I could pull this off. I did, as you'll see, come up with a solution that approximates--sufficiently for my current needs, in any case--the video component of the khanacademy lectures.

According to wikipedia, in addition to a screen capture program and a graphics tablet--a hardware item I do not own--khanacademy uses a freeware program called Smoothdraw for making their lecture videos (see for a fuller description of how they make their videos). One would assume that likely some video converting software, for conversion to flash, may also be employed by khanacademy. Thus, 4 basic components are required for producing these sorts of video lectures: a graphics tablet, a graphics program, a screen capture program, and possibly a video file conversion program.

In my initial tests to imitate this under GNU/Linux, I decided I would forego the graphics tablet and just use the hardware I already have--a mouse and keyboard. Should I continue to meet with success, I could later acquire a tablet so as to approximate more closely the results produced by the khanacademy. This also saved me some possible hiccups in trying to get the graphics tablet working under GNU/Linux and within the graphics program with which I'd be using it. Having attempted in the past to draw freehand and write using a mouse, I knew this meant I'd be typing to my chalkboard rather than writing by hand. Mouse use would be restricted to adding emphasis, e.g., underlining typed words, perhaps drawing an occassional simple figure like an arrow or "x," and the like.

Though I cut corners, as it were, on the hardware end, I didn't need to cut corners in two other important areas--namely the screen capture program and the video conversion program. recordmydesktop does an excellent job of screen capture, while ffmpeg does the video conversion for me--in this case from the ogg theora output of recordmydesktop to the flash format. The encoding is quite resource-intensive and correspondingly time-consuming--taking over 2 hours to encode a 54-minute lecture on this old P4 2.6 with 1 GB of RAM. But the resulting video came out perfectly fine, despite the wait.

As for the graphics program I decided to start off using tuxpaint--a graphics program for children. It's not nearly as capable as Smoothdraw--for example, it is not possible in tuxpaint to simply scroll away the screen once it's been filled up with writing. But tuxpaint does have an eraser cursor that works to reasonably good effect. It is also a fairly lightweight program, which to me is always desireable, and especially apropos given the older hardware I'm using. There are undoubteldy better choices for graphics programs--programs that would work as well as or better than Smoothdraw for creating the sorts of effects seen in the khanacademy videos. But for an initial foray into this realm tuxpaint has worked well.

As to the particulars of how I am creating my lecture videos using this system, I first start tuxpaint at 1024x768 resolution (my display is set at 1280x1024): tuxpaint --1024x768 --nosound. I then fire up recordmydesktop, as follows: recordmydesktop -x 300 -y 200 --width 800 --height 600 --pause-shortcut Control+p --no-cursor ---v_quality 12 -o recordd-desktp-vid.ogv. After I've moved tuxpaint around on the screen so that just the drawing-board portion of the program is within the frame recordmydesktop creates, I begin recording my lecture, typing in text as needed. Then, as an additional step that may or may not be needed depending on what will be done with the output file, after recordmydesktop has finished encoding the lecture, ffmpeg can be run as follows: ffmpeg -i recordd-file.ogv -s vga convrtd-file.flv.

A few explanations on the switches I use when running these programs. As for tuxpaint, the --nosound option is imperative if you expect to use this program in conjunction with a lecture. The program makes all manner of sounds in regular use--all calculated to delight children, but which would obviously be out of place in a lecture for adults. As to recordmydesktop switches, I find control+p to be a more intuitive pause key sequence than the default (control Mod1 p): this, of course, allows me to pause the video as I deliver my lecture, then to resume it. The --no-cursor switch, as should be evident, causes the cursor to not be recorded in the video. Finally, since I do not need a very high-quality video in the final output, and since I want to decrease the file's size a bit, I use the --v_quality 12 switch (0 being the lowest possible video quality and 63 the highest).

This is a quick and dirty summary of how I've cobbled together, using a set of GNU/Linux utilities, a means of producing lecture videos that mimic crudely the final products seen on khanacademy's web site. As mentioned, I consider this an initial foray into this area. I hope to implement improvements and enhancements and, with feedback from readers who have more experience and/or expertise, to arrive at a much improved means of producing lecture-augmenting videos under GNU/Linux.

Here is a short demo video made using the kludge described above:

If you have pointers for how more effectively to create lecture videos using GNU/Linux, or can suggest improvements on the method I've developed, please offer your input!
